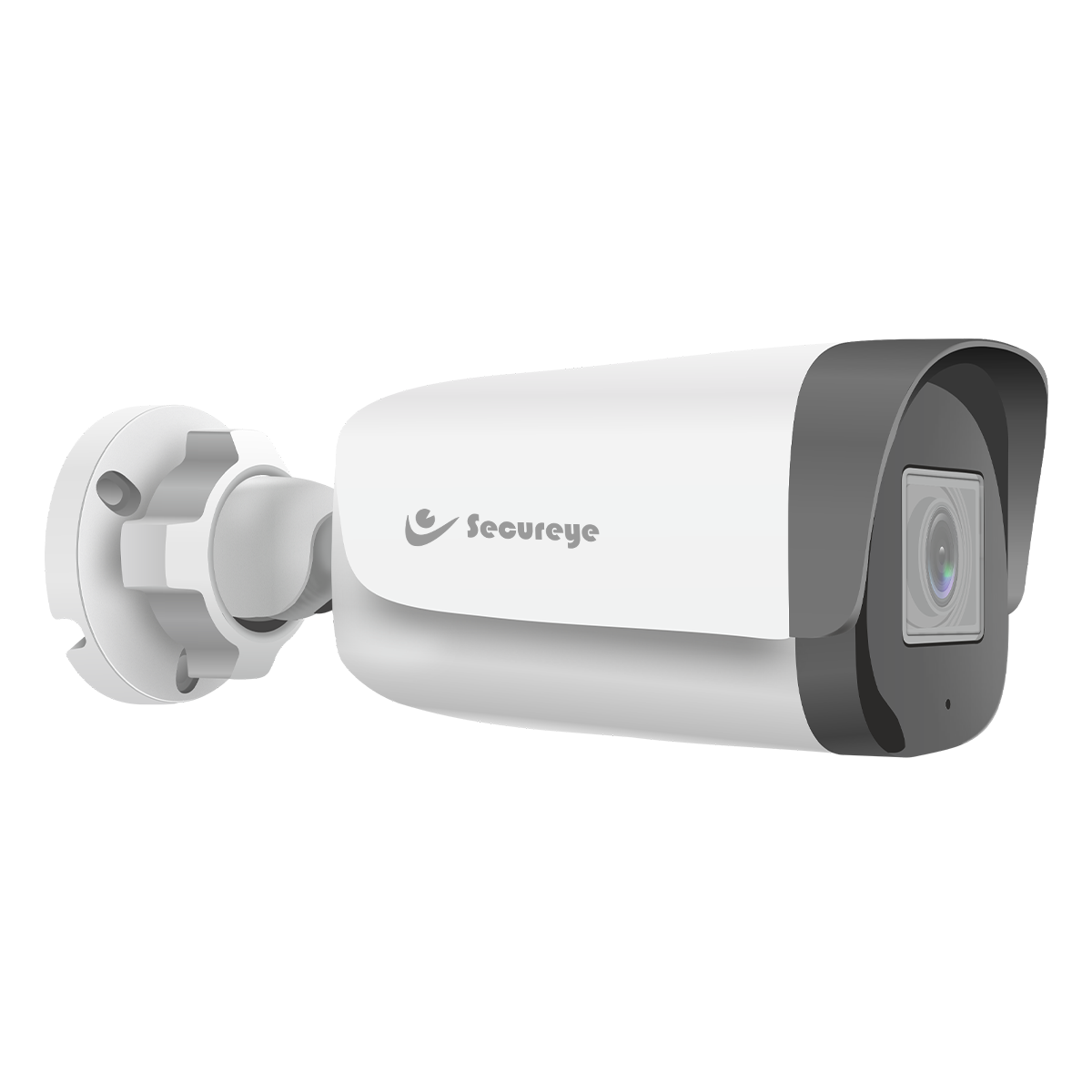

SP-C2UN 2MP IP Motorized IR Bullet Camera, 80M IR, PoE, Audio, 2.8-12mm, Vivid Pro Series

Specifications
Technical Specification
Camera
Image Sensor
1/2.8″CMOS

Min. Illumination
Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR

Shutter Time
1s-1/100000s

Day&Night
IR-cut filter with auto switch (ICR)

WDR
DWDR

S/N
>39dB

Angle Adjustment
0-360o; 0-90o; 0-360o

Lens
Lens Type
Motorized

Focal Length
2.8-12mm

Lens Mount
14

Aperture Range
F1.6,Fixed

Field of View
108.1o-31.3o(H); 58.1o-17.6o(V); 124.6o-35.9o(D)

DORI Distance
W:
Detect: 38.6m
Observe: 15.3m
Recognize: 7.7m
“Identify: 3.8m
T:”
Detect: 165.5m
Observe: 65.6m
Recognize: 33.1m
Identify: 16.5m

Illuminator
IR LEDs
4

IR Distance
80m

Wavelength
850nm

Compression Standard
Video Compression
S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate
32k-4Mbps

Audio Compression
G.711A/G.711U

Audio Sampling Rate
8kHz

Max. Resolution
1920×1080@30fps

Main Stream
PAL: 25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC: 30fps(1920×1080, 1280×720, 640×480, 704×480)

Sub Stream
PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)

BLC
Yes

HLC
Yes

AGC
Yes

3D DNR
Yes

White Balance
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/ Incandescent lamp/Locked white balance

ROI
8 regions

OSD
1 regions; 16*16/32*32/48*48

Privacy Mask
4 regions

Defog
Yes

Feature
Alarm Trigger
Motion Detection; Mask Alarm; Disk Full, Disk R/W Error; IP Address Conflict

Linkage Method
Trigger Recording; Trigger Capture; notify Surveillance Center

Network
ANR
ANR

Protocols
HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP

System Compatibility
P2P(Mutually exclusive with Profile G); Onvif Profile S/T; CGI; MIL STONE

Remote Connection
2

PC CMS Software
Secureye Smart Client

Mobile APP
Phoenix Pro

Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface
Communication Interface
1 RJ45 10M/100M self adaptive Ethernet port

Built-In Mic
Yes

Reset Button
Yes(built-in)

On-board storage
Built-in Micro SD card slot, up to 512 GB

General
Web Client Language
English/Spanish/Italian/Turkish French/Polish/German/Ukrainian

Operating Temperature
-300C-60C0

Operating Humidity
0-95%

Storage temperature
-300C-60C0

Storage Humidity
0-95%(non-condensing)

Power Supply
DC12V+_ 25%, MAX 6.5W; POE 802.3af, MAX 7W

Protection
Surge Protection 2000V; Lightning Proof 6000V; IP67

Boundary Dimensions
204(L)83.6(W)76.2(H)mm

Package Dimensions
215(L)95(W)120(H)mm

Gross Weight
0.57Kg

Net Weight
0.42Kg
